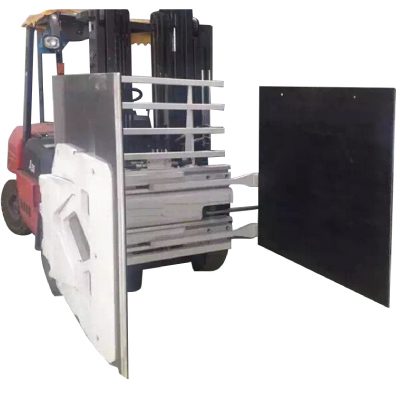

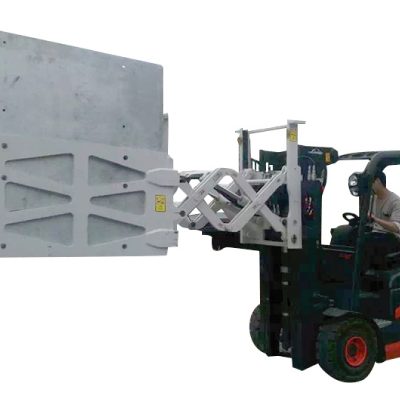

Pinza per cartone per carrello elevatore Classe 3 e 1220 * 1420 mm Dimensioni braccio

Carton clamps can safe and efficiently handle all kinds of carton packaging. Apply to tobacco, household electrical appliances(such as refrigerators, televisions, washing machines, and other industries) no pallet handling and stacking operations.

Forklift attachment carton clamp class 3 & 1220*1420 mm arm size

specificazione

---

Capacità @ Load Center	Catalogare	Classe di montaggio	Gamma di apertura	Altezza del braccio (Mm)	Lunghezza del braccio (Mm)	Vertical Center of Gravity(CGV) (Mm)	Horizontal Center of Gravity(CGH) (Mm)	Spessore effettivo (ET) (Mm)	Peso (kg)
1600@535	SLR-A05CC	2	560-1930	1220	1070	326	420	132	640
1600@535	SLR-A06CC	2	560-1930	1220	1170	326	428	132	640
1600@610	SLR-A07CC	2	560-1930	1220	1220	326	448	132	696
1500@660	SLR-A08CC	2	560-1930	1220	1320	326	475	132	750
1400@710	SLR-A09CC	2	560-1930	1220	1420	326	485	132	762
1400@610	SLR-A10CC	2	560-1930	1320	1220	348	455	132	728
1400@660	SLR-A11CC	2	560-1930	1320	1320	348	475	132	785
2300@610	SLR-B20CC	3	540-1850	1320	1220	420	465	132	795
2300@660	SLR-B21CC	3	540-1850	1320	1320	420	475	152	850
2300@710	SLR-B22CC	3	540-1850	1320	1420	420	485	152	898
2300@610	SLR-B23CC	3	540-1850	1320	1220	430	475	152	852
2300@660	SLR-B24CC	3	540-1850	1320	1320	430	485	152	908

Nota

---

1) All the carton clamp can side shift, Requires a forklift to increase the additional 2 sets of oil-way.

2) Forklift equipped with four pressure regulating valve.

Forklift attachment carton clamp class 3 & 1220*1420 mm arm size

video

---



Info Veloci

---

Luogo di origine: Fujian, Cina (continente)
Marchio: HUAMAI
Product name: Forklift attachment carton clamp
Capacità di carico: 1600 kg
Opening range: 560-1930 mm
Mounting class: 2
Arm height: 1220 mm
Arm length: 1070 mm
Effective Thickness: 132 mm

---



Aggiunta di spostamento laterale al carrello elevatore, Attacco morsetto cartone
